Meets ISO 8041 and ISO 2631 IEPE / ICP powering Low price Dedicated to SVAN 958 and SVAN 958A

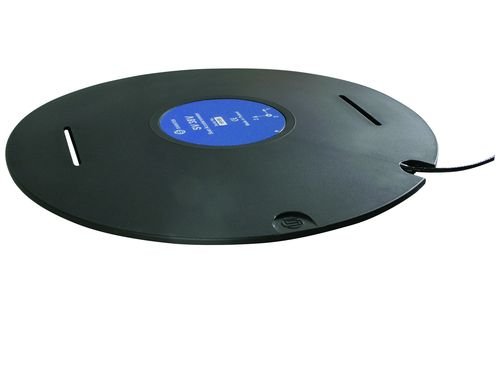

The SV151, SV38 and SV38V are accelerometers that use MEMS technology for accurately measuring whole-body vibration. MEMS accelerometers have very high shock resistance, no DC offset effect, very low power consumption and a frequency response  down to DC level. The SV106 human vibration analyser from Svantek has multichannel inputs which allows simultaneous measurement using 2 tri-axial seat accelerometers where one of them is usually placed on the operator’s seat and the second either on the seat-rest or on the passenger’s seat. For the SEAT transmissibility measurements the small size SV 151 is placed on the vehicle floor in accordance to ISO2631-1. Mounting straps and brackets are provided with the sensors to suit most applications.
