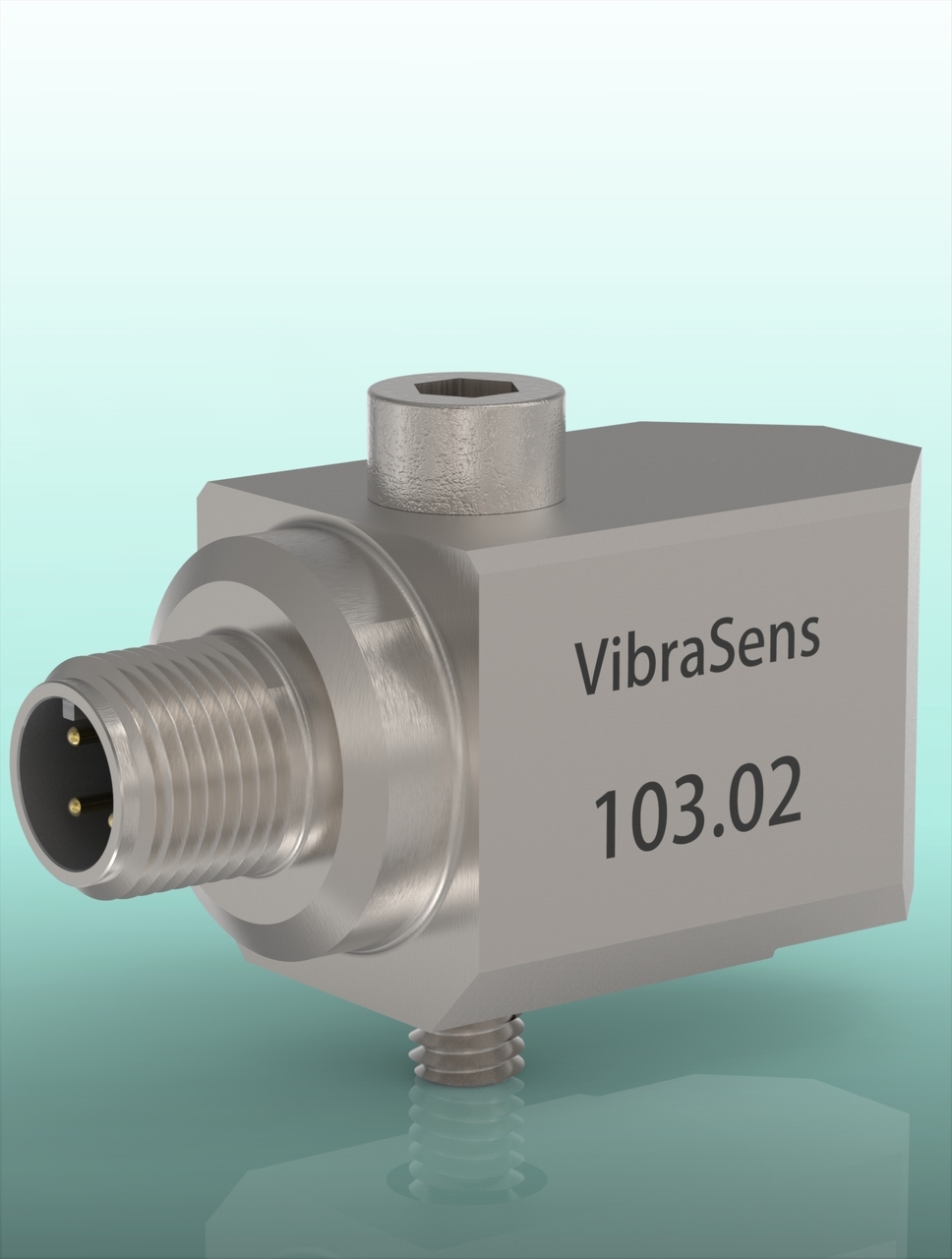

Model 103.02, General Purpose
- Best Selling
- Hardware
- Software
- Transmission
- Parameters
- accelerometers
- general purpose
To make it simple:
Except the side connector, the model 103.02 has the same characteristics as the model 101.51
Some additional details you have to notice:
Frequency response presents some minor resonance (piezoelectric ceramic is not aligned with mounting screw)

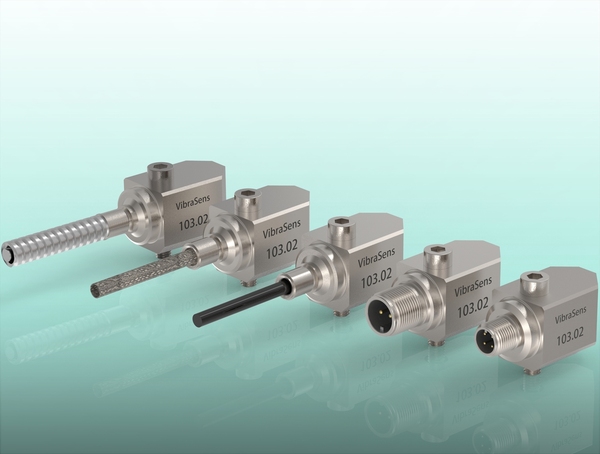

Variants:
*10 mV/g±5%, Mil connector, 800 g Dynamic
*100 mV/g±10%, Mil connector, 80g Dynamic
*100mV/g+-10%, M12 connector, 80g Dynamic
*500 mV/g±5%, Mil connector, 16g Dynamic
*100 mV/g±10%, 16 ft (5m) 194°F Polyurethane cable, 80g Dynamic
*100 mV/g±10%, 16 ft (5m) 392°F overbraided FEP cable, 80g Dynamic
*100 mV/g±10%, 16 ft (5m) 194°F Polyurethane cable with SSTL Conduit, 80g Dynamic
Technical file
