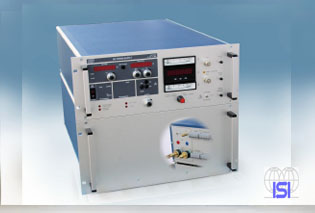

Double stabilization for superconducting magnets NTS series This family of power supplies is specially tailored to applications with superconducting coils; longitudinally regulated with a set of parallel power transistors as an actuator. The supply voltage of the series regulator is regulated as low as possible by a second control loop with thyristor phase control. The power loss at the actuator is therefore always as small as possible in excitation and steady-state constant current operation. In the de-excitation mode, the actuator is controlled as a current sink. The resulting power loss is dissipated via air or water cooling.

SPECIAL FEATURES: - Double stabilization for superconducting coils - For charging and discharging highly inductive, superconducting coils - Quench detection function Technical file
