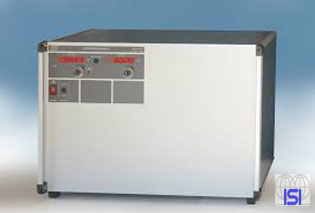

Linear regulation NLN series from 6.5V to 500V / 35W to 1.4kW The mains voltage is transformed and rectified according to the required maximum output voltage. With the rectified voltage, the capacitor bank of the intermediate circuit is charged to a constant voltage, which is sent to the output via a serial control transistor. The control transistor determines the stability of the output values ??and the control speed. Optionally, a set of power transistors can be installed in parallel to the output as a current sink in order to achieve active down regulation. The linearly regulated power supply units are optimized for high programming speed.

SPECIAL FEATURES: - Linear regulation - Fast and precise regulation - Developed to also include the current sink functionality for 2-quadrant operation. Technical file
