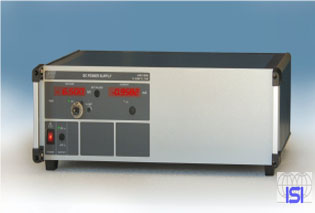

Bipolar clocked circuit HCB series from 1.25kV to 20kV / 1.4W to 200W Bipolar high-voltage power supplies consist of 2 primary switched-mode power supplies with pulse width modulation. The rectified mains voltage is chopped into square-wave pulses of constant frequency, transformed, rectified and smoothed. The square wave voltage is width modulated for regulation. The two switched-mode power supplies are connected to one another at the output and are operated in opposite directions. The output can thus be continuously controlled by "0".

SPECIAL FEATURES: - Switching control - Bipolar power supplies consisting of 2 power supplies Technical file
