ED-549

ED-549

[ Signal process ]

  • Best Selling
  • Hardware
  • Software
  • Transmission
  • Parameters

- 8 differential channels, individually configurable - 0-10V and 4-20mA inputs - connect all types of sensors - Factory floor process control and automation, Integrated DIN rail mount - Monitor instantly from any web-browser - -30°C to +80°C Temperature range - Programmable Gain Amp allows full resolution measurements down to 75mV

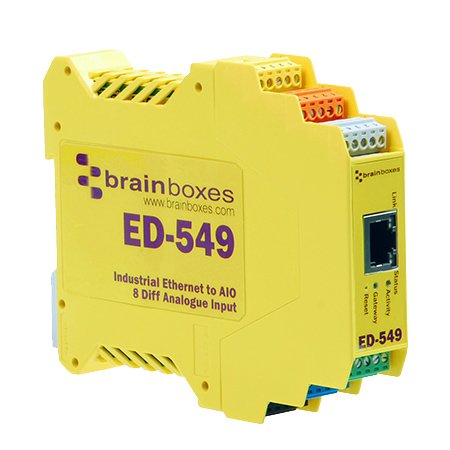

Description Ideal for all kinds of industry standard sensors and transducers. The ED-549 has 8 Analogue Inputs + RS485 Gateway. It is suitable for high-precision measurements of voltages and currents.Most parameters in the real world are measured using sensors with analogue outputs sensors and Brainboxes ED-549 takes these real world signals and turns them into data on your network. As well as the popular 0-10V and 4-20mA input devices, there is now a Programmable Gain Amplifier (PGA) allowing full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 8 analogue inputs. Each channel is individually configurable for voltage or current input with its own programmable gain. Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
