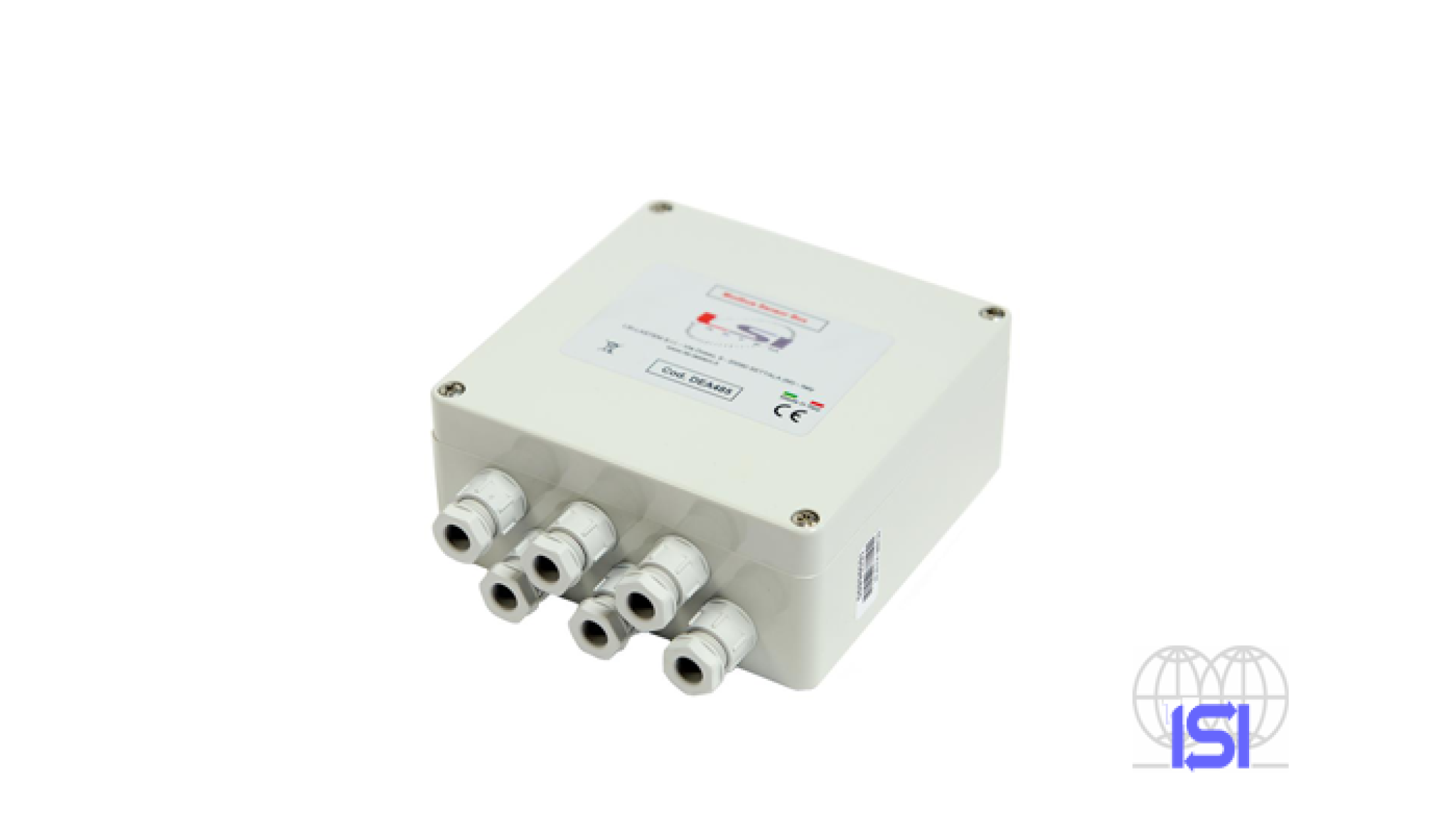

Signal converter (Voltage, Pt100 and Frequency) to RS485 with Modbus RTU protocol Sensor conditioning unit to convert (Volt, Pt100 e Hz) signals into RS485 over RTU Modbus protocol. It can receive signals from different sensors on the market as: solar irradiance sensor, also pyranometers (configurable sensitivity value), temperature sensors (Pt100), wind speed sensor (Hz) and Storm distance sensor.

Highlights - N.1 high-resolution input (18 bit) for Pyranometer/reference cell (µV, mV) or 0÷1V; - Configurable pyranometer sensitivity value; - N.2 Pt100 inputs (3-wire) with 0.5°C accuracy; - N.1 included internal Pt100 temperature sensor as alternative to external sensor; - N.1 pulse/frequency input for LSI Lastem wind speed sensors (DNA202-30x); - N.1 ingresso RS232 iper sensore di Distanza Fronte Temporalesco (DQA601.1); - RS485 (2-wire) Modbus RTU® port with galvanic insulation; - Output: instant value and current statistical values (min/avg/max, tot.) for every chanel over programmable time base; - 9÷30 Vdc Power Supply; - N.1 RS232 port on board for configuration using Terminal Emu-lation program; - IP66 protection grade. Technical file
